Metal Perforated Plate Corrugated Structured Packing: High-Capacity Solutions for Demanding Distillation​

Metal Perforated Plate
Metal Perforated Plate Corrugated Structured Packing

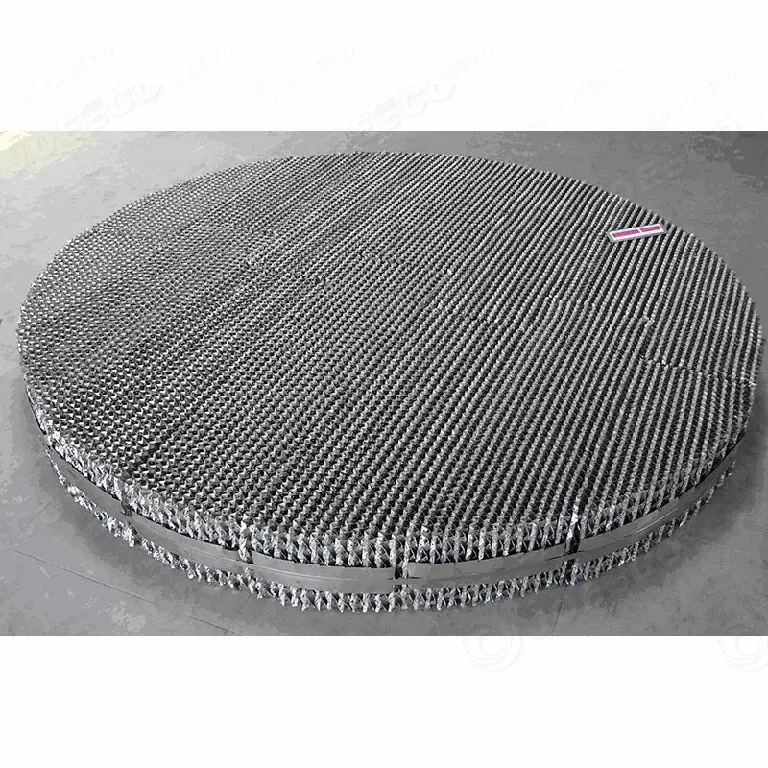

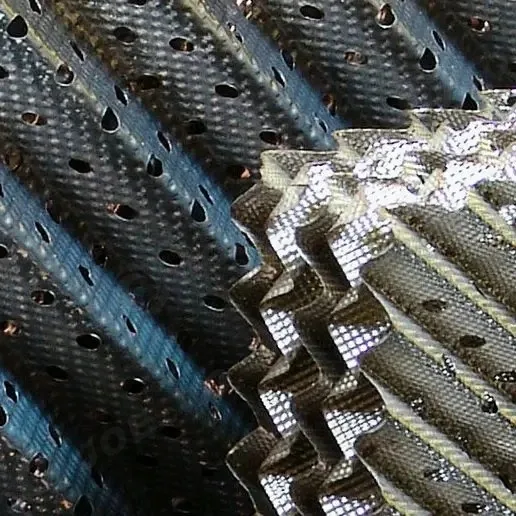

Metal Perforated Plate Corrugated Structured Packing uses precision-punched 5mm holes in corrugated metal sheets (stainless steel, Monel, titanium) to maximize liquid distribution and surface wettability. Engineered for high liquid-load applications and large-diameter columns, it delivers superior strength, corrosion resistance, and process stability under challenging conditions.

Metal Perforated Plate 2
Metal Perforated Plate Corrugated Structured Packing 2

​Key Features & Benefits​

  • ​5mm Perforated Design:​​ Enhances liquid distribution & surface wettability
  • ​Heavy-Duty Performance:​​ Withstands high liquid loads & large column diameters
  • ​Corrosion-Resistant Materials:​​ Stainless steel, Monel, titanium for harsh environments
  • ​Optimized Flow Dynamics:​​ X-Type (30°) for low ∆P vs. Y-Type (45°) for high mass transfer
  • ​Specialized Variant:​​ Protruded plate design boosts filtration efficiency

​Specifications Table​

ModelArea (m²/m³)Density (kg/m³)Voidage (%)Pressure Drop (Pa/m)Plates/m
125Y12510098.52001.0-1.2
250Y250200973002.0-3.0
350Y350280953503.5-4.0
500Y500360934004.0-4.5
125X12510098.51400.8-0.9
250X250200971801.6-2.0
350X350280952302.3-2.8
500X500360932802.8-3.2

Metal Perforated Plate 3
Metal Perforated Plate Corrugated Structured Packing 3

Design Innovation​

  • ​X-Type (30° Angle):​​ Low-pressure drop operation
  • ​Y-Type (45° Angle):​​ Maximum mass transfer efficiency
  • ​Protruded Plate Variant:​​ Surface modifications enhance filtration

​Industrial Applications​

Ideal for high-capacity separation systems:
• Atmospheric/Vacuum Crude Fractionators
• FCC Main Fractionators
• TEG Gas Dehydration Contactors
• Petrochemical Scrubbers
• High-Load Absorption Towers
