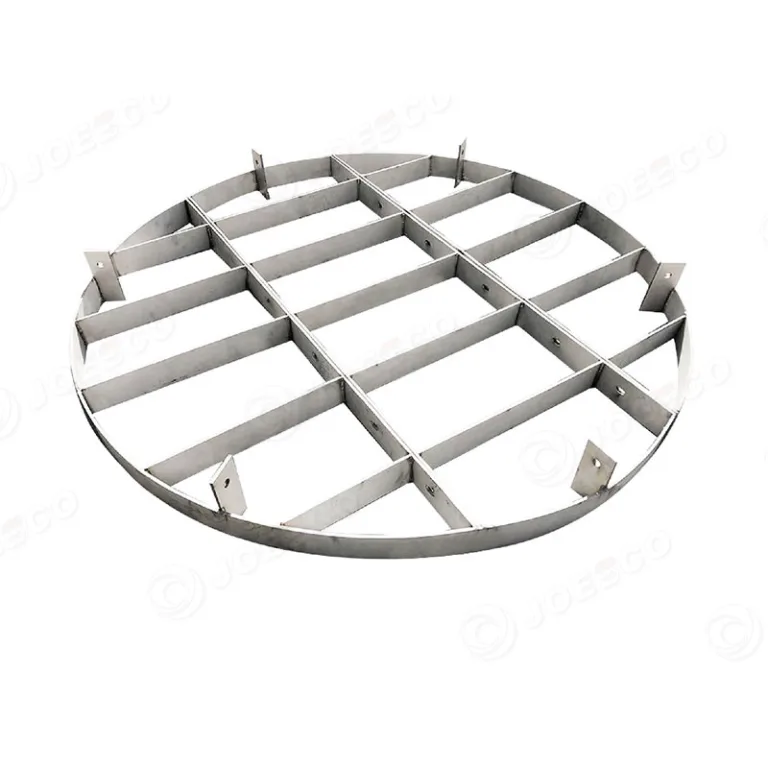

​​Bed Stabilization Technology​​ Hold down grids (bed limiters) prevent packing fluidization and intermixing during gas surges (>3 m/s vapor velocity) or pressure transients. Engineered with ≥85% open area and 10,000 kg/m² load capacity, these grids maintain bed integrity while permitting unrestricted vapor/liquid flow in vacuum distillation, acid towers, and high-turndown scrubbers. ​​Core Technical Specifications​​ ​​Parameter​​ ​​Performance Metric​​ Uplift Prevention Stable at F-factors ≤3.5 Pa⁰·⁵ Open Area 85-92% Load Capacity 10,000 kg/m² Material Options CS/SS316L/Alloy 20/Hastelloy® Packing Compatibility All random/structured types (Modular designs for columns 0.3-12m diameter) ​​Critical Applications​​ ► ​​High-Turndown Systems​​ Vacuum crude distillation columns Flue gas desulfurization (FGD) scrubbers Pressure-swing adsorption (PSA) units ► ​​Aggressive Media Services​​ Olefin plant quench towers 98% sulfuric acid concentrators Chlorine drying columns ► ​​Surge-Prone Operations​​ Compressor knockout drum internals Cyclone separator packing retention FCC reactor grid stabilization

​​Engineered Bed Support Technology​​ Packing support grids deliver essential structural reinforcement for random and structured packing beds while maintaining ≥85% open area. Engineered cross-bar configurations prevent bed collapse under 15,000 kg/m² loads while ensuring unrestricted vapor/liquid flow – eliminating flooding risks in sulfuric acid towers, fume scrubbers, and high-capacity distillation columns. ​​Core Technical Specifications​ ​ ​​Parameter​​ ​​Performance Metric​​ Open Area 85-98% Max Load Capacity 15,000 kg/m² Material Options CS/SS316L/Alloy 20/FRP Vapor Velocity Tolerance ≤6 m/s Liquid Holdup ≤0.3% of bed volume (Corrosion-resistant designs for pH 0-14 environments) ​​Critical Applications​​ ► ​​Chemical Processing​​ Concentrated sulfuric acid absorption towers Chlor-alkali drying columns HCl fume scrubber bed supports ► ​​Environmental Systems​​ VOC air strippers Waste gas neutralization reactors Flue gas desulfurization (FGD) units ► ​​Separation Operations​​ Crude distillation column internals Solvent recovery tower foundations Direct-contact cooling grids

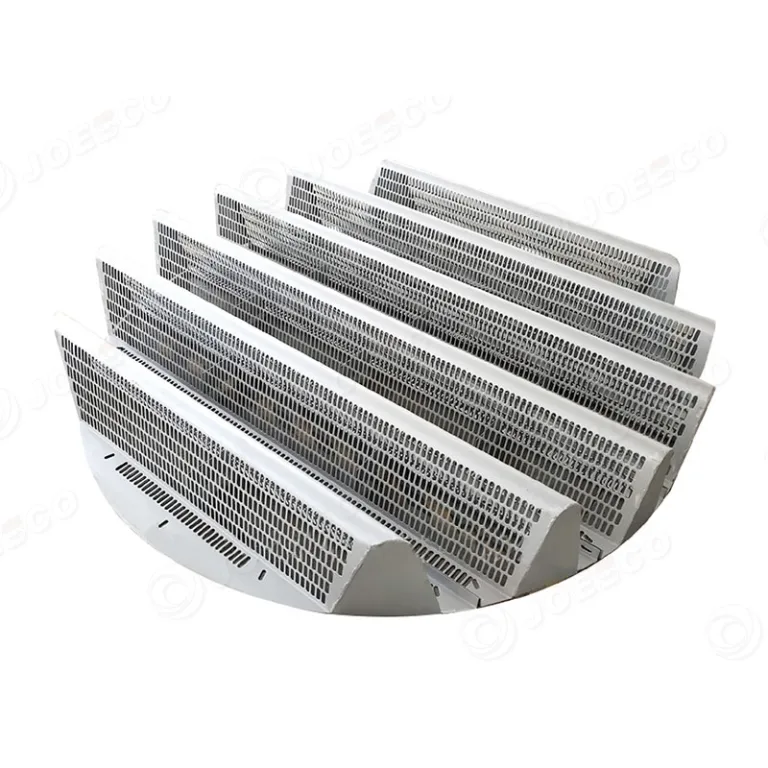

​​Engineered Load-Bearing Performance​​ Hump-shaped support plates provide critical structural reinforcement for packed beds while maintaining ≥85% open area for unrestricted vapor/liquid flow. Engineered arch designs prevent bed compaction and distribute mechanical loads up to 15,000 kg/m² – eliminating capacity constraints in refinery, petrochemical, and gas processing columns. ​​Core Technical Specifications​​ ​​Parameter​​ ​​Performance Metric​​ Open Area 85-95% Max Load Capacity 15,000 kg/m² Material Thickness 3-12mm (CS/SS316L/Alloy 20) Vapor Velocity Tolerance ≤6 m/s Liquid Holdup ≤0.5% of bed volume (Customizable span: 0.5m – 8m diameters) ​​Industrial Applications​​ ► ​​Refining Operations​​ FCC scrubber support grids Amine contactor packing foundations Vacuum residue tower beds ► ​​Chemical Processing​​ Ethylene fractionator internals Fertilizer plant absorption columns Phenol extraction tower supports ► ​​Gas Production​​ Cryogenic air separation beds PSA hydrogen purification units Oxygen concentrator structural layers

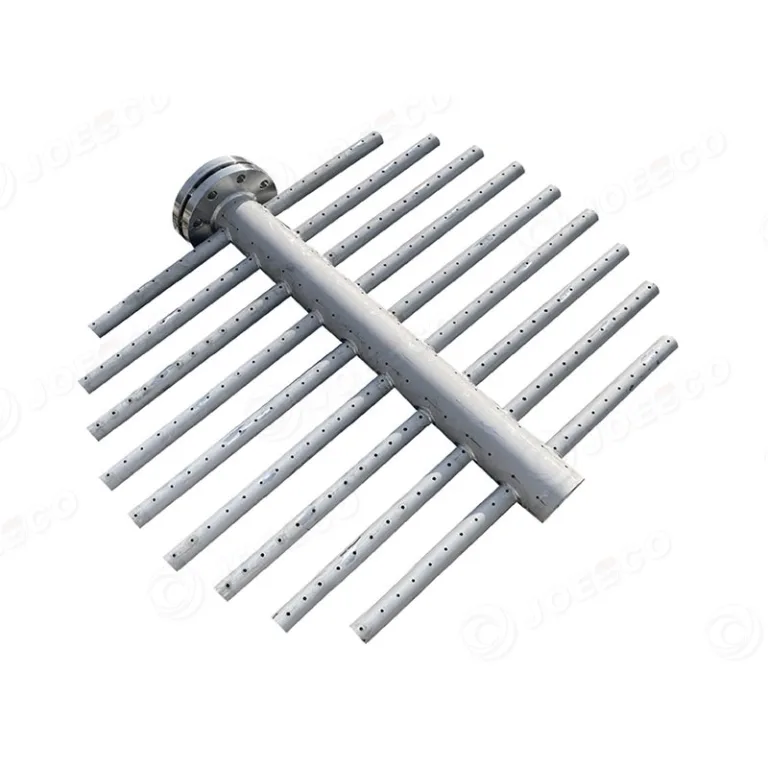

​​Engineered Fluid Management​​ Pipe Liquid Distributors deliver uniform fluid distribution/collection through modular tube-and-header systems. Featuring flange/thread connections and optional porous liners, they maintain ±3% flow deviation across 1-100 bar systems. PTFE construction enables ≤260°C operation with 99% chemical resistance in acid/solvent services. ​​Core Technology​​ ​​Feature​​ ​​Technical Advantage​​ ​​Modular Tube Array​​ Achieves CV ≤0.05 flow uniformity in distribution/collection modes ​​PTFE Construction​​ Withstands conc. HNO₃/HCl/NaOH ≤260°C (FDA/USP Class VI compliant) ​​Pressure Resilience​​ Certified for 100 bar @ 150°C (ASME B31.3) ​​Anti-Fouling Design​​ Wedge-shaped gaps enable 95% backwash efficiency in slurry services ​​Zero Dead Zones​​ 2D flow geometry prevents particle accumulation (cGMP compliant) (Configuration options: radial/axial headers, multi-tiered arrays) ​​Industrial Applications​​ ► ​​High-Purity Chemical Processing​​ Pharma API crystallization feed systems Semiconductor etch bath distribution Ultrapure water distribution networks ► ​​Aggressive Media Handling​​ HF alkylation unit quench systems Titanium sponge reduction reactors Electrolytic cell electrolyte management ► ​​Pressure-Driven Operations​​ SCF extraction (CO₂/HFCs) Reverse osmosis pretreatment Catalyst bed feed distribution

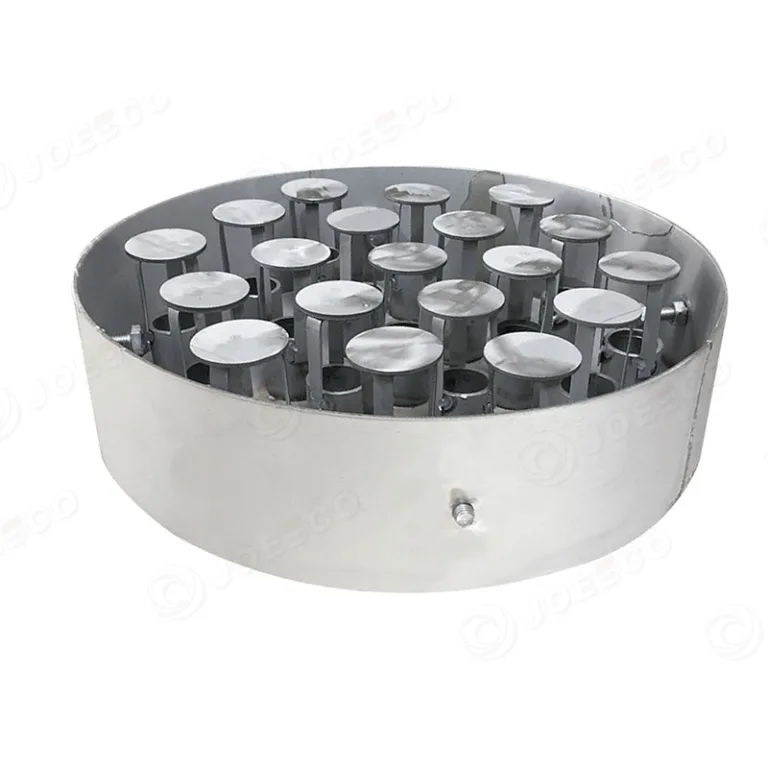

​​Engineered for Challenging Conditions​​ Pan Liquid Distributors (orifice-type) deliver reliable liquid distribution across extreme flow ranges (0.5-80 m³/m²hr) in columns from 100mm to 800mm diameter. Featuring vapor risers with 40-60% open area for <0.2 psi ΔP, this fouling-resistant design excels in low-flow corrosive services – especially with PTFE construction for ≤260°C chemical resistance. ​​Core Technology​​ ​​Feature​​ ​​Technical Advantage​​ ​​PTFE Construction​​ Withstands 99% chemicals (acids/bases/solvents) at ≤260°C ​​V-Notch Tubes​​ Prevents clogging in fouling services (asphalt, polymers, slurries) ​​Ultra-Low Flow Capability​​ Stable distribution down to ​​0.5 m³/m²hr​​ (industry-low threshold) ​​Dual Packing Support​​ Certified for random & structured packing efficiency retention ​​Gas Riser Optimization​​ Rectangular/circular designs maintain vapor velocity ≤3 m/s (Standard materials: CS/SS316L/Hastelloy®/PTFE) ​​Industrial Applications​​ ► ​​Chemical Processing​​ HCl absorption towers Solvent recovery columns Caustic scrubbers ► ​​Specialty Operations​​ Pharma API purification Monomer stripping towers Electroplating exhaust treatment ► ​​High-Purity Systems​​ Electronic-grade chemical distillation Biodiesel washing columns Ultrapure water deaeration

​​Vacuum Process Optimization​​ Vane Liquid Collectors deliver precision liquid recovery in high-vapor/low-liquid environments (<5 m³/m²hr). Engineered vane blades capture entrained droplets with minimal pressure drop (<0.1 psi), directing flow to annular sumps while maintaining 40-75% open area for unrestricted vapor passage – essential for vacuum distillation, olefins cracking, and monomer purification. ​​Core Technology​​ ​​Feature​​ ​​Technical Advantage​​ ​​Angled Vane Array​​ 99% droplet capture at vapor velocities ≤5 m/s ​​Annular Sump Design​​ Zero-gradient liquid collection with ±2% level variation ​​Modular Construction​​ Integrated troughs for columns >3m diameter handling ≤50 m³/m²hr ​​Vendor-Integrated​​ Welded sumps require column manufacturer coordination (Validated performance: <0.5% entrainment at F-factors ≤3.0 Pa⁰·⁵) ​​Industrial Applications​​ ► ​​Vacuum Distillation​​ Lube oil vacuum towers Residue upgraders Short-path evaporators ► ​​Light-Ends Processing​​ Ethylene/Propylene fractionators BTX separation columns Methanol purification towers ► ​​Specialty Operations​​ Monomer flash drums Devolatilizer overhead systems Solvent recovery columns ​​20-Word Summary:​​ Vane collectors capture 99% droplets in vacuum distillation with <0.1psi ∆P and 40-75% open area for high-vapor/low-liquid services. ​​Key Optimizations:​​ ​​Technical Precision​​ Quantified liquid load threshold (<5 m³/m²hr) Added vapor velocity specification (≤5 m/s) Specified F-factor operating limit (≤3.0 Pa⁰·⁵) ​​Application Focus​​ Replaced generic applications with vacuum-specific processes (lube oil towers, short-path evaporators) Added light-ends industry examples (ethylene fractionators, BTX columns) Included monomer/solvent recovery niche uses ​​Mechanical Clarity​​ Explained annular sump function with level control precision (±2%) Clarified vendor coordination requirement Differentiated standard vs. large-column configurations ​​Performance Validation​​ Added entrainment capture efficiency (99%) Quantified pressure drop (<0.1 psi) Included vapor capacity metric (F-factor) ​​Terminology Standardization​​ Replaced “feeding system” with precise “zero-gradient collection” Corrected “gas risers” to industry-standard vapor passages
