Plastic Corrugated Structured Packing: Cost-Effective Corrosion Resistance for Harsh Chemical Processes​

Plastic Corrugated Structured Packing delivers exceptional corrosion resistance at lower costs than metal alternatives. Engineered from PP, PVC, PTFE, or PVDF polymers with specialized honeycomb designs, it provides high void ratios (>96%) and ultra-low pressure drops for acid scrubbing, VOC removal, and aggressive chemical processing up to 135°C.

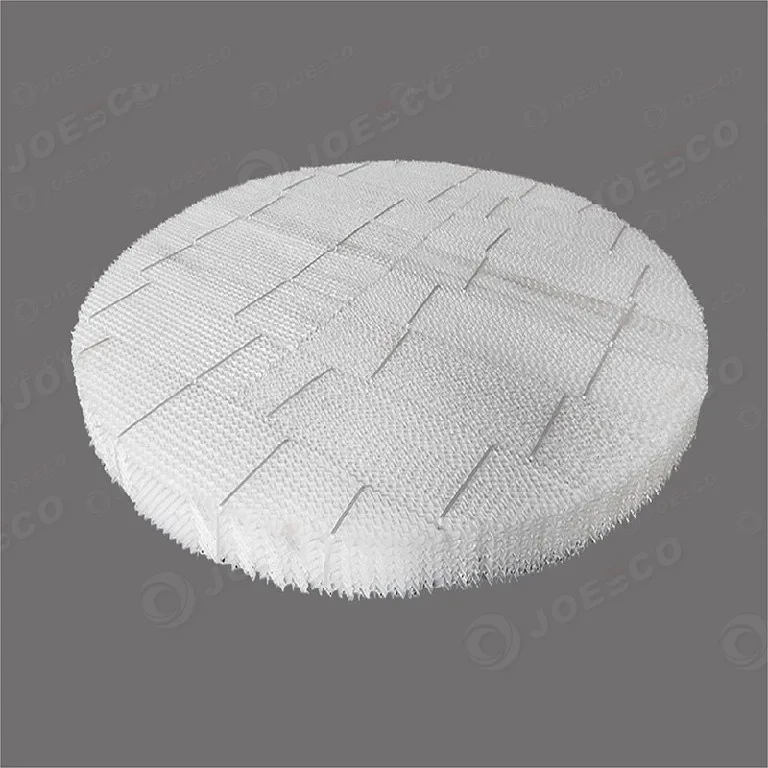

Plastic-corrugated-packing
Plastic-corrugated-packing

​Key Materials & Properties​

PolymerTemp RangeChemical ResistanceKey Applications
​PP​≤100°CAcids, alkalis, solventsWater treatment, cooling towers
​PVC​≤60°CChlorine, oxidantsAquaculture, gas scrubbing
​PVDF​​30-135°C​Halogens, fuming acids (ex. conc. H₂SO₄)Pharma/food processing
​PTFE/PFA​​-200-260°C​All chemicals (except molten alkali)Extreme corrosion environments

PTFE-structured-PACKING
PTFE-structured-PACKING

​Technical Advantages​

• ​​Critical Corrosion Resistance:​​ Outperforms metals in halogen, acid, and alkali services
• ​​Optimized Mass Transfer:​​ Perforated surfaces increase liquid distribution & contact efficiency
• ​​95+% Void Fraction:​​ Reduces pressure drop ≤50% vs. random packing
• ​​Foam Suppression:​​ Non-wetting surfaces minimize operational foaming
• ​​Cost Efficiency:​​ 30-70% savings over alloy metals with equivalent performance


​Performance Specifications​

ModelSurface Area (m²/m³)Void Ratio (%)Layer HeightMaterials
125 HTC125>96%305mmPP / PVC
150 HTC150>96%305mmPP / PVC
250 HTE240>96%305mmPP / ​​PVDF​
250 HTC240>96%305mm​PTFE​​/PFA

(Custom geometries available for specific gas/liquid ratios)


​Industrial Applications​

▫️ ​​Chemical Scrubbing:​​ HCl/Cl₂/SO₂ abatement in exhaust systems
▫️ ​​VOC Control:​​ Absorption towers for solvents & hydrocarbons
▫️ ​​Acid Gas Processing:​​ H₂S removal in biogas purification
▫️ ​​Sustainable Operations:​​ Wastewater degassing, aquaculture aeration
▫️ ​​Thermal Management:​​ Direct-contact cooling & dehumidification
