Advanced Entrainment Control
Wire Mesh Demisters utilize precision-woven metal/non-metal meshes (Ø≤0.3mm) to capture 99.5% of liquid droplets down to 1μm. Engineered with >95% void volume and customizable configurations (ring/chevron/withdrawable), they deliver <0.15 kPa pressure drop while eliminating carryover in refinery sour water strippers, chemical scrubbers, and acid gas treatment units.
Core Technology
| Type | Structure | Key Advantage |
|---|---|---|

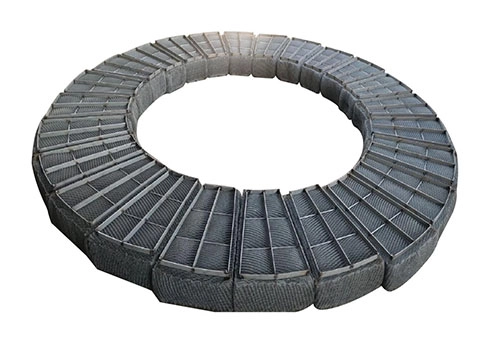

| Ring Mesh | Concentric wave layers | Standard efficiency (98%) |
| Chevron Mesh | Angled vane stacks | Highest efficiency (99.9%) |

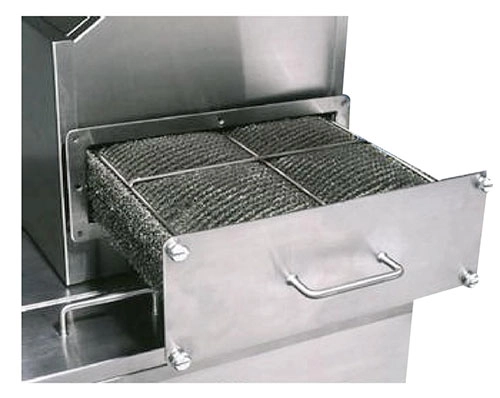

| Withdrawable Mesh | Modular cartridges | Maintenance without vessel entry |

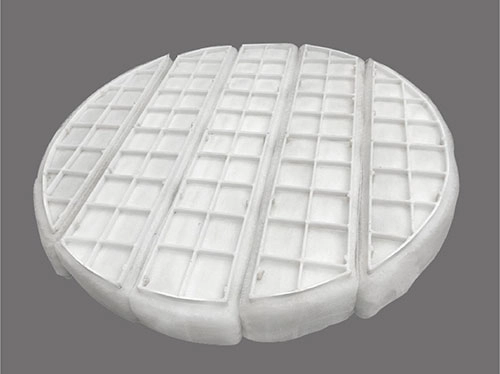

| PTFE Mesh | Non-metallic weave | HF/HCl resistance ≤200°C |
(Material options: SS304/316L/Alloy 20/Hastelloy®/Monel®/PTFE)
Performance Specifications
- Droplet Removal: ≥99.5% @ 0.5-5μm size
- Void Fraction: 95-99%
- ∆P: 0.1-0.25 kPa @ 3m/s face velocity
- Max Temperature: 550°C (metal)/200°C (PTFE)
- Face Velocity: 1-6 m/s (design optimized)
Industrial Benefits
- Carryover Elimination: Prevents downstream compressor/catalyst damage
- Vessel Size Reduction: 30% smaller than centrifugal separators
- Emissions Compliance: Meets EPA/EU particulate standards
- Material Recovery: Recaptures ≥98% of entrained solvents/acids
- Retrofit Flexibility: Installs through standard manways
Critical Applications
► Refining & Petrochemical
- Sour water strippers (H₂S/NH₃ removal)
- Acid gas treatment units
- FCC reactor overhead systems
► Chemical Processing
- HCl absorption towers
- Chlorine drying operations
- Solvent recovery vents
► Environmental Control
- Scrubber stack emissions
- Biogas upgrading systems
- Flue gas desulfurization
► Specialty Industries
- Lithium battery electrolyte recovery
- Semiconductor gas purification
- Pharmaceutical API drying
