Engineered Hybrid Performance
Trough-Pan Liquid-Gas Distributors combine the liquid-handling capacity of trough distributors with the gas-phase control of tray technology. Featuring integrated defoaming devices that capture micro-to-macro foams at inlet/outlet points, this compact design delivers 10:1 operational turndown while eliminating entrainment and fouling in foaming services.
Core Technology
| Innovation | Operational Impact |
|---|---|
| Hybrid Trough-Tray Design | Balanced gas-liquid distribution (±3% deviation) in foaming/contaminated systems |
| Multistage Defoaming | 99% foam destruction efficiency at velocities ≤0.3m/s |
| Corrosion Resistance | Available in U-PVC (≥pH 1-14), CS/SS316L, Hastelloy® |
| Low ∆P Gas Channels | Maintains <0.15psi pressure drop at 200% design capacity |
(Turndown elasticity: 10:1 vapor/liquid flow variance without redistribution degradation)
Industry Applications
► Foam-Prone Processes
- Amine regeneration towers (MEA/DEA/MDEA)
- Sulfur recovery unit (SRU) tail gas scrubbers
- Fatty acid distillation columns

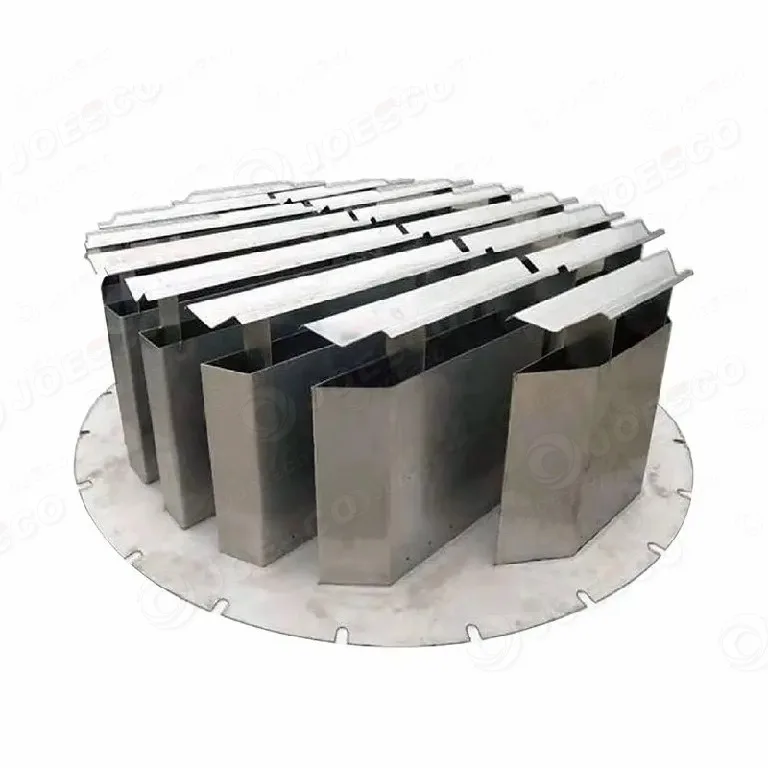

Trough-pan-Liquid-gas-Distributors2
► Contamination-Sensitive Systems
- Pharmaceutical extraction columns
- Biofuel washing towers
- Electroplating fume scrubbers
► Extreme Operating Conditions
- Vacuum crude distillation (0.5-50 mbar)
- High-fouling coker fractionators
- Polymer devolatilization towers
