Engineered Simplicity

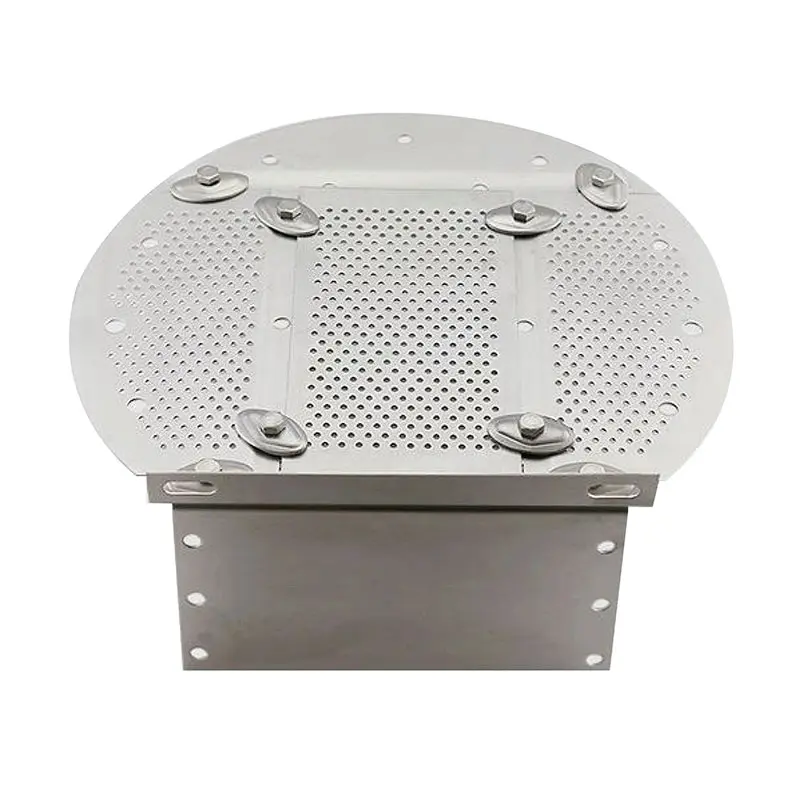

Metal Sieve Trays deliver reliable vapor-liquid contact through precision-perforated plates requiring zero moving parts. Designed for fouling/corrosive services, they offer 30-50% cost savings over valve trays while enabling extended liquid residence times (>60s) – ideal for refinery scrubbers, chemical reactors, and processes where phase contact duration outweighs turndown flexibility needs.
Core Technical Specifications
| Parameter | Performance Metric |
|---|---|
| Turndown Ratio | 2.5:1 |
| Hole Velocity Range | 6-24 m/s |
| Open Area | 8-18% (customizable) |
| Max Liquid Residence | 90 seconds |
| Pressure Drop | 0.7-1.2 kPa/tray |
| Material Options | CS/SS316L/Hastelloy®/Titanium |
(Corrosion allowance: +3mm standard for aggressive media)
Performance Comparison
| Characteristic | Sieve Tray | Valve Tray | Bubble Cap |
|---|---|---|---|
| Capital Cost | ● Lowest | ▲ Medium | ▲ Highest |
| Fouling Resistance | ● Excellent | ▼ Moderate | ▼ Poor |
| Turndown Flexibility | ▼ Limited (2.5:1) | ● Good (4-6:1) | ● Best (10:1) |
| Liquid Residence Time | ● Highest | ▼ Medium | ● High |
| Maintenance | ● Minimal | ▼ Moderate | ▼ High |
Industrial Applications
► Refining & Petrochemical
- FCC scrubber quench sections
- Amine contactor reaction zones
- Caustic wash towers (NaOH/ KOH)
- Sulfuric acid alkylation settlers
► Chemical Processing
- Polymerization reactors
- Chlor-alkali brine purification
- Phosphoric acid concentrators
► Environmental Systems
- Wet air oxidation reactors
- Biogas scrubber contact stages
- Waste acid regeneration towers
Key Operational Benefits
- Fouling Immunity: No moving parts prevents clogging in asphalt/slurry services
- Corrosion Management: Extra material thickness for erosion allowance
- Reaction Optimization: Extended contact time enhances slow chemical processes
- Fabrication Efficiency: Laser-cut holes maintain ±0.2mm tolerances
- Retrofit Advantage: Direct replacement for damaged trays with minimal modification
