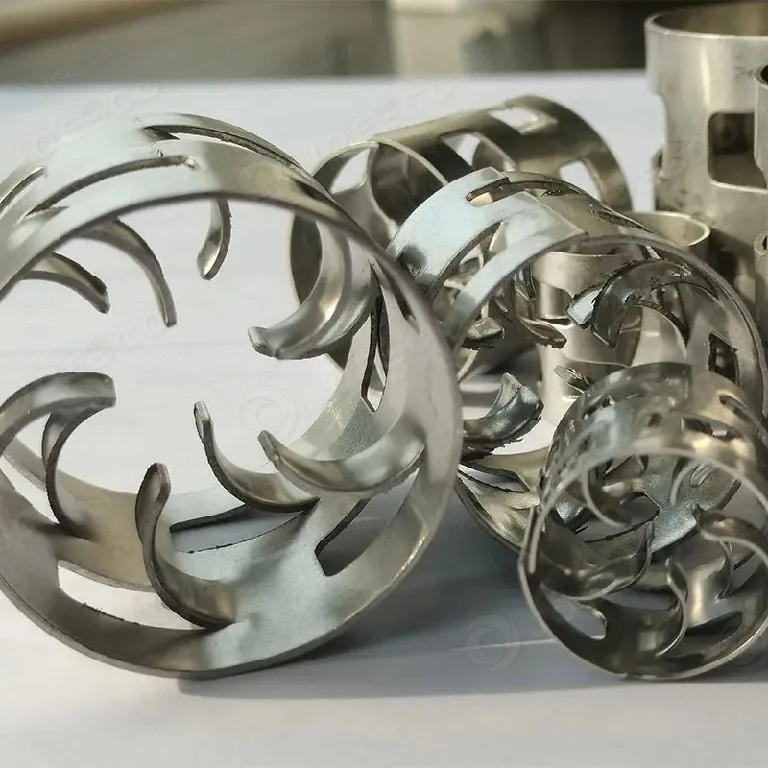

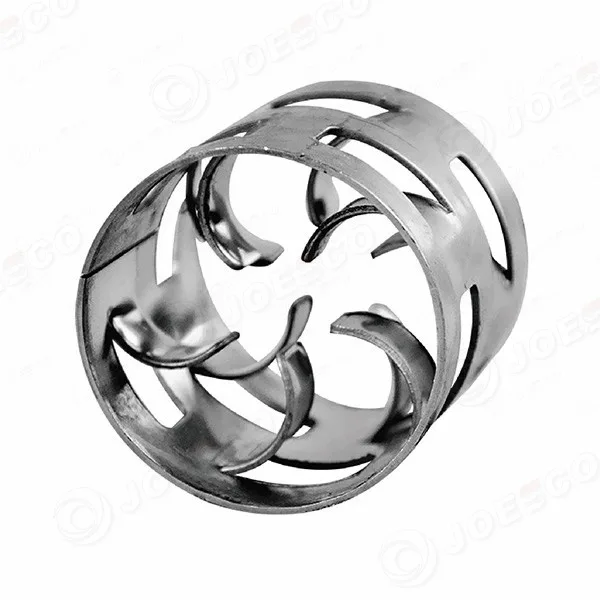

Metal Pall Ring Packing – The Reliable Workhorse for Tower Operations

10/22/2025

Metal Pall Ring Packing – Efficiency You Can Trust

When it comes to tower packing, sometimes the classics are still the best. Metal pall rings have been a go-to solution for decades—and for good reason. They strike a practical balance between performance, cost, and reliability that’s hard to beat. Whether you’re running a high-temperature distillation column or treating gas in an absorption tower, pall rings deliver consistent results without complicating your operation.

We appreciate packing that just works. Pall rings improve gas-liquid contact with their clever design: openings and internal tabs create more surface area while keeping pressure drop low. That means better separation without extra energy costs. It’s a straightforward solution that engineers continue to rely on.

Clear Specifications – No Guesswork

Model	Dimensions (mm)	Surface Area (m²/m³)	Void Fraction (%)
Dg16	16×16×0.5	364	93
Dg25	25×25×0.6	219	93.7
Dg38	38×38×0.8	129	94.5
Dg50	50×50×1.0	112	94.7
Dg76	76×76×1.5	70	95.2

Where Pall Rings Shine

H₂S, SO₂, and NH₃ absorption systems
Steam stripping and direct contact cooling
Vacuum distillation and decarbonization
Refinery, petrochemical, and pharmaceutical processes

Why They Remain a Top Choice

High Capacity, Low Pressure Drop: Handles large flows efficiently, especially under vacuum.
Excellent Wettability: Spreads liquid evenly for consistent mass transfer.
Durable & Temperature-Resistant: Metal construction withstands heat and harsh chemicals.
Proven Design: Trusted in thousands of towers worldwide—simple and effective.

No overcomplication, no surprises. Pall rings are the dependable choice when you need performance that lasts. If you value practicality and results, they’re still one of the smartest options available.
