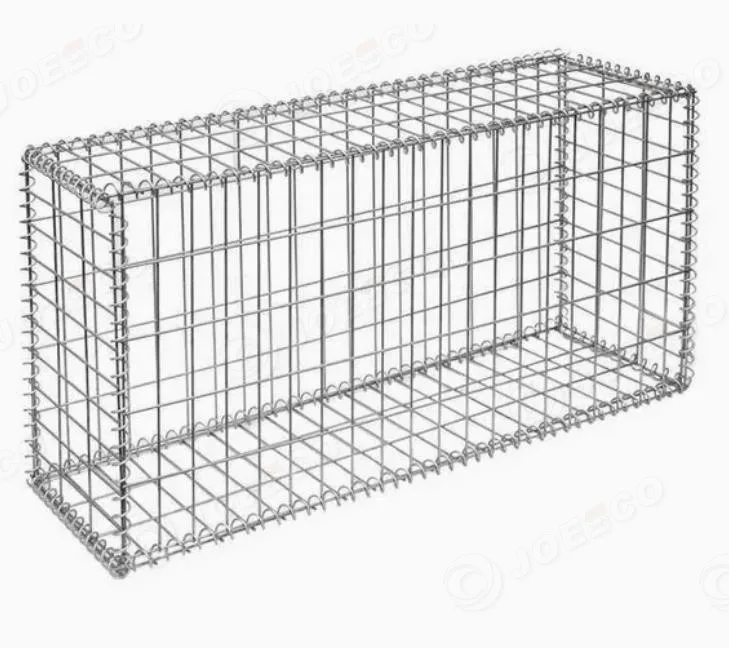

Custom Size Welded Gabion Box – Galvanized/PE Coated for Civil Engineering

12/11/2025

Modular | Corrosion-Resistant | Cost-Effective Erosion Control

Basic Info.

Feature	Details
Model	WW7
Material	Hot-DIP Galvanized Steel Wire (Galfan/PVC-coated optional)

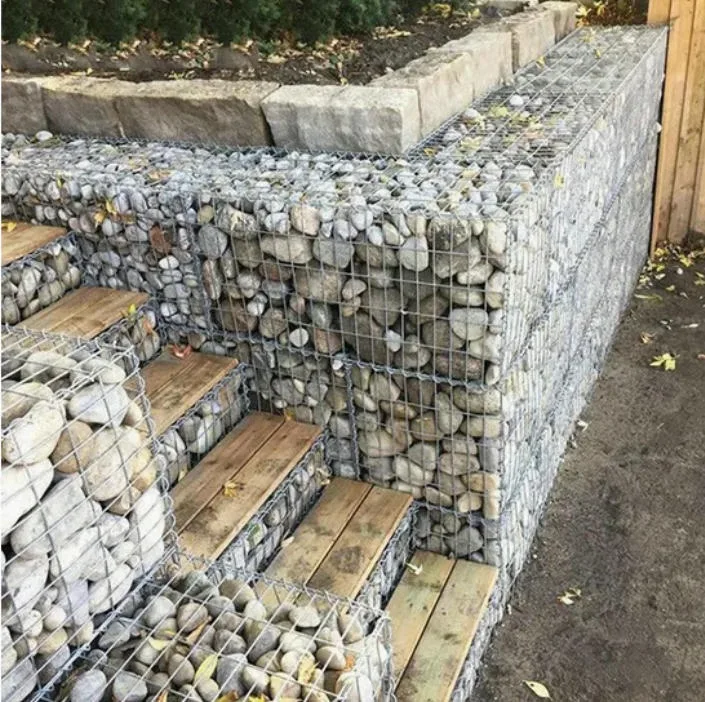

Application	Riverbank Protection, Slope Stabilization, Retaining Walls, Erosion Control
Hole Shape	Square
Mesh Size	50×50mm, 75×75mm, 100×100mm (Standard) / Customizable
Box Sizes	1m³ (100×100×100cm), 2m³ (200×100×100cm) / Customizable up to 6m³
Wire Diameter	3.5–5.0mm (adjustable for load-bearing needs)
Surface Treatment	Hot-DIP Galvanized (215–275g/m²) or PVC Coated (0.3–0.5mm)
Price	US$20.00–60.00 / Set (MOQ: 200 Sets)
Packaging	Palletized + Waterproof PE Film + Steel Straps for Ocean/land Transport
Certifications	ISO 9001:2015, CE, ROHS, 3-Year Warranty
Production	50,000m²/month

Product Description

Customizable Welded Gabion Boxes are engineered for robust civil engineering and environmental projects. Combining precision-welded steel wire mesh with modular design, these boxes offer unparalleled strength, corrosion resistance, and adaptability.

Key Advantages:

Extreme Durability:
- Hot-dip galvanized or PVC-coated mesh resists rust/corrosion for 20–30+ years.
- Welded joints withstand heavy loads (e.g., soil, stones, floods) without deformation.
Ultra-Customizable:
- Sizes: From 0.5m³ to 6m³, with square/hexagonal mesh options.
- Materials: Galvanized steel, PVC-coated steel, or Galfan alloy (5% Al, 95% Zn).
- Colors: Standard galvanized or customized PVC coatings for camouflage.
Eco-Friendly Solutions:
- Permeable mesh promotes water drainage, preventing soil erosion and hydrostatic pressure.
- Filled with locally sourced stones to reduce carbon footprint.
Rapid Deployment:
- Flat-packed for easy transportation and on-site assembly (no special tools required).

Specification

Parameter	Details
Mesh Openings	50×50mm, 75×75mm, 100×100mm
Load-Bearing Capacity	Up to 50 tons/m² (depends on wire diameter and filling material)
Connection Method	Spiral Binders (2–4mm diameter) or Wire Ties
Fire Resistance	Non-combustible (ASTM E84 Class A compliant)
Customization	Shape/size/color adjustable (minimum 200 sets)

Why Choose Us?

Proven Track Record:
- 15+ years manufacturing experience in Hebei, China (global wire mesh hub).
- Exported to 120+ countries, including major projects in the U.S., EU, and Middle East.
Technical Excellence:
- ISO 9001:2015 & CE certified, with 3-Year Warranty on all products.
- Free pre-production samples (shipping paid by buyer).
Cost Efficiency:
- Lowest market price starting at US$20.00/Set (MOQ: 200 Sets).
- Bulk order discounts available.
