Hot DIP Galvanized Gabion Spiral Wire Welded Boxes

Basic Info.

Feature	Details
Model	GM3
Material	Hot-Dip Galvanized Steel Wire (Galfan/PVC-coated optional)
Weave Method	Precision Electric Welding (Square Mesh)
Surface Treatment	Zinc Coating (215–275g/m²) or PVC Coating (0.3–0.5mm)
Mesh Sizes	50×50mm, 75×75mm, 80×80mm, 100×100mm
Box Sizes	Standard: 2m³ (200×100×100cm, etc.) Customizable up to 6m³
Wire Diameter	3.0–6.0mm (adjustable for load-bearing needs)
Certifications	ISO 9001:2015, CE, ROHS, Three-Year Warranty
MOQ	2 Metric Tons
Packaging	Palletized for Safe Shipping
Production	50,000m²/month

Product Description

Hot-DIP Galvanized Gabion Spiral Wire Welded Boxes are the ultimate solution for civil engineering, environmental protection, and infrastructure projects requiring unmatched strength and adaptability. Engineered with precision-welded steel wire mesh, these robust boxes deliver superior durability, flexibility, and corrosion resistance.

Key Benefits:

Unmatched Durability:
- Hot-dip galvanized or PVC-coated wire mesh resists rust and corrosion for 20–30+ years.

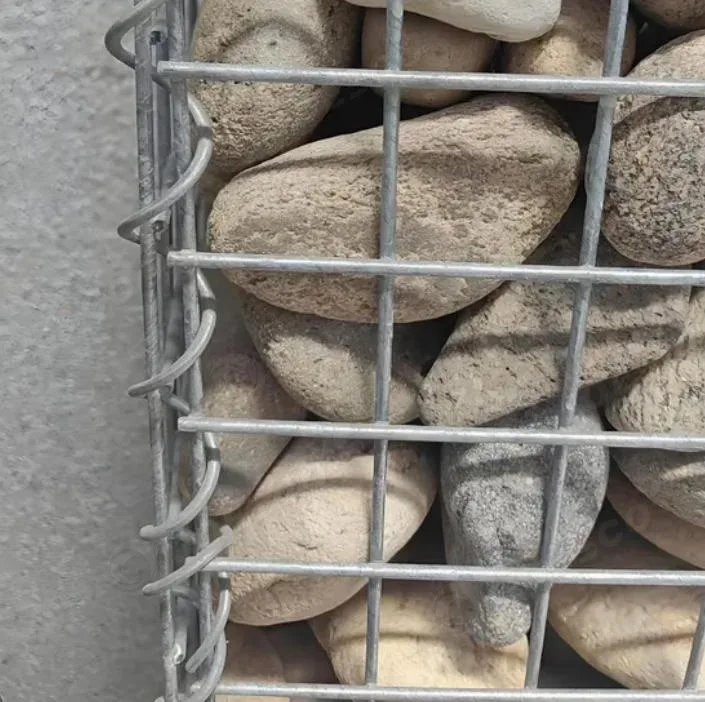

- Spiral binding and C-ring connections ensure zero deformation under extreme loads (e.g., floods, earthquakes).
Flexibility for Any Project:
- Modular design allows quick assembly without specialized tools.
- Customizable sizes and shapes to fit uneven terrain or unique project requirements.
Eco-Friendly & Cost-Effective:
- Porous mesh promotes water drainage, preventing soil erosion and hydrostatic pressure buildup.
- Supports vegetation growth, blending seamlessly with natural landscapes.
Versatile Applications:
- Riverbank reinforcement, slope stabilization, retaining walls, hydraulic structures, and more.

Specification

Parameter	Details
Mesh Openings	50×50mm to 100×100mm (customizable)
Load-Bearing Capacity	Up to 50 tons/m² (depends on wire diameter and filling material)
Coating Thickness	Galvanized: 0.018–0.025mm Galfan: 0.021–0.030mm PVC: 0.3–0.5mm
Connection Methods	Spiral Binding (2–4mm diameter) C-Ring Connectors (for added tensile strength)
Fire Resistance	Non-combustible (meets ASTM E84 Class A standards)
