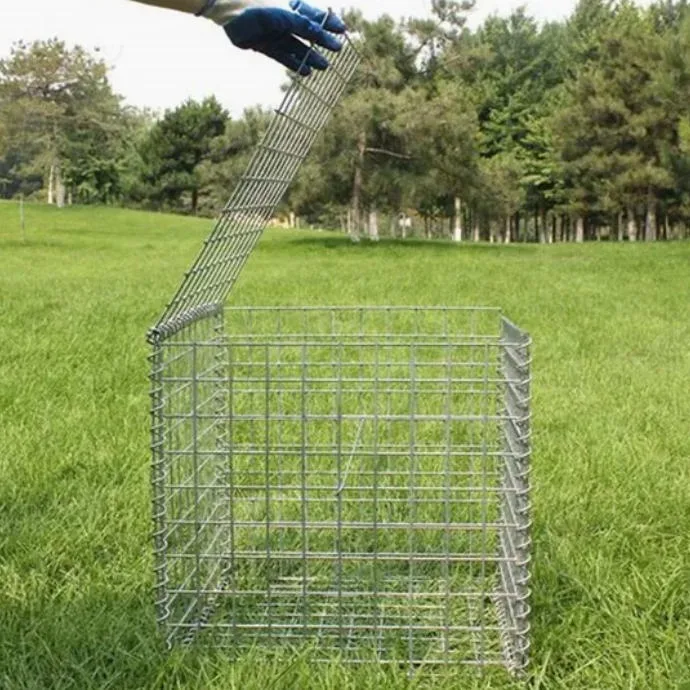

High Strength Welded Gabion Box for Riverbank & Road Protection

Durable | Customizable | Eco-Friendly Infrastructure Solution

Basic Info.

Feature	Details
Model	WW6
Material	Hot-DIP Galvanized Steel Wire (PVC/Galfan-coated optional)
Application	Riverbank Reinforcement, Road Construction, Slope Stabilization
Hole Shape	Square
Mesh Size	50×50mm, 75×75mm, 100×100mm
Box Sizes	1m³ (100×100×100cm) – 6m³ (Customizable)
Wire Diameter	3.5–5.0mm (Adjustable for Load-Bearing Needs)
Surface Treatment	Galvanized (215–275g/m²) or PVC Coated (0.3–0.5mm)
Price	US$20.00–60.00 / Set (MOQ: 200 Sets)
Packaging	Palletized + Waterproof PE Film + Steel Straps (Seaworthy for Global Shipment)
Certifications	ISO 9001:2015, CE, ROHS, 3-Year Warranty
Production	50,000m²/month

Product Description

High-Strength Welded Gabion Boxes are engineered for critical infrastructure projects requiring unmatched durability and flexibility. Constructed from precision-welded galvanized steel wire mesh, these boxes combine corrosion resistance, load-bearing capacity, and rapid installation capabilities.

Key Benefits:

Unmatched Durability:

- Welded joints ensure zero deformation under extreme loads (e.g., soil, stones, floods).
- 20–30+ year lifespan with hot-dip galvanizing or PVC coating.
Ultra-Customizable:
- Sizes: From compact 1m³ units to massive 6m³ structures.
- Materials: Galvanized, PVC-coated, or Galfan alloy (5% Al, 95% Zn) for enhanced corrosion resistance.
- Colors: Standard galvanized or custom PVC hues for blending into landscapes.
Eco-Friendly & Cost-Effective:
- Permeable design prevents waterlogging and promotes natural drainage.
- Filled with local stones to reduce transportation emissions.
Rapid Deployment:
- Flat-packed for easy shipping and on-site assembly (no heavy machinery required).

Specification

Parameter	Details
Mesh Openings	50×50mm, 75×75mm, 100×100mm
Load-Bearing Capacity	Up to 50 tons/m² (Varies with Wire Diameter/Fill Material)
Connection Method	Spiral Binders (2–4mm) or Wire Ties
Fire Resistance	Non-combustible (ASTM E84 Class A compliant)
Customization	Minimum Order: 200 Sets (Any Size/Color)

Why Choose Us?

Global Leadership:
- 15+ years specializing in wire mesh in Hebei, China (Asia’s manufacturing hub).
- Exported to 120+ countries, including key projects in the U.S., EU, and the Middle East.
Quality Assurance:
- ISO 9001:2015 & CE certified, with 3-Year Warranty on all products.
- Free pre-production samples (shipping paid by buyer).
Cost Efficiency:
- Starting at US$20.00/Set (MOQ: 200 Sets).
- Bulk discounts available for large orders.
